IKEA SEKTION Corner Cabinet Layout Problems? These 12 Checks Can Save $425

The corner cabinet usually gets blamed when an L-shaped kitchen feels cramped, but the real problem is often the assumption that one standard box must solve everything. A 36-inch cabinet with an 18-inch door and an 18-inch concealed panel can create a smaller blind corner when a conventional unit runs too far.

For 2026 planning, the smarter question is whether the cabinet, opening, and hardware actually match. Current UTRUSTA fittings have different requirements from older SEKTION setups, so the useful answer starts with measurements, not a shopping cart.

What you will find inside

• Treat the Corner as a Layout Problem
• Use the 36-Inch Blind-Corner Layout
• Shrink the Build to 30 Inches
• Separate Door Width From Clear Opening
• Measure the Cabinet Box Before Choosing Hardware
• Reserve UTRUSTA for the Right Cabinet
• Check the Load Before Storing Cast Iron
• Test the 50-Inch Requirement First
• Price the Organizer Separately
• Compare the Two Full Cabinet Combinations
• Design the Concealed Panel Like a Real Front
• Build the Order Around Installation

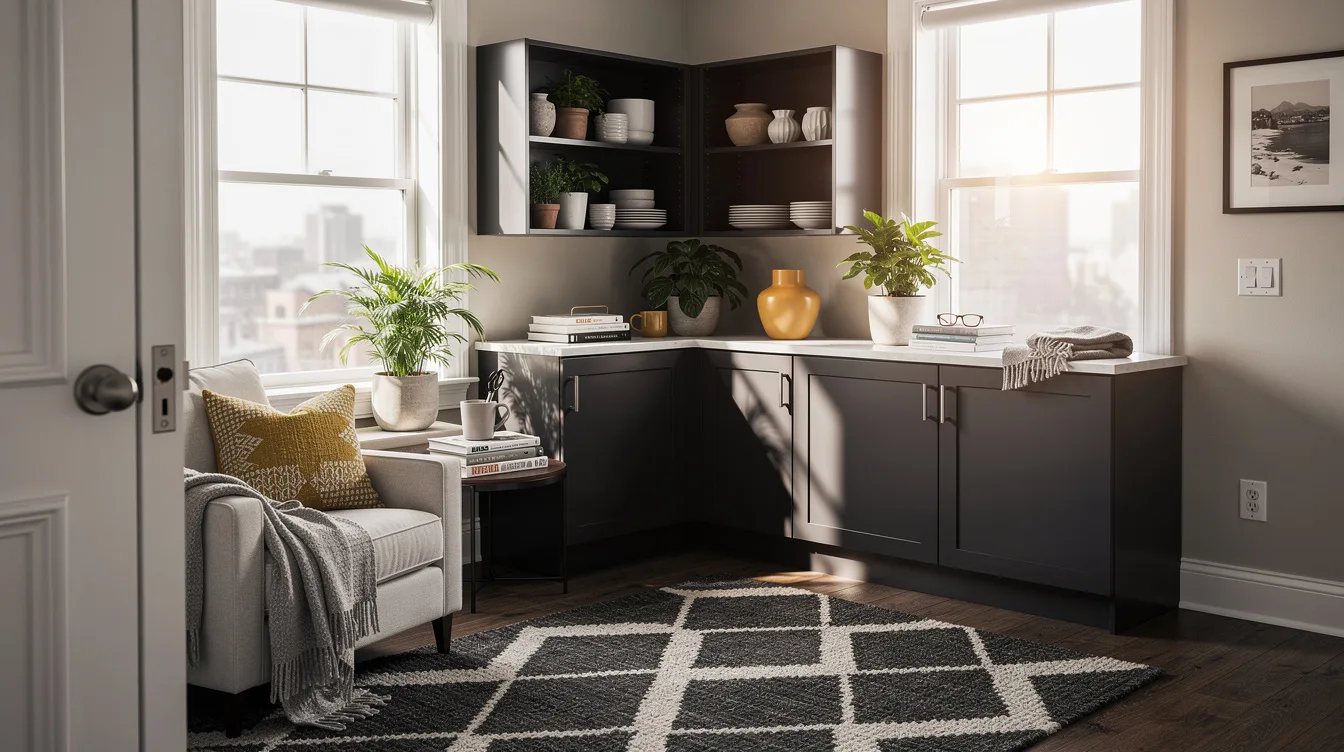

Treat the Corner as a Layout Problem

The useful move is customization. A blind-corner layout can give the kitchen a smaller footprint than IKEA’s standard corner cabinet while preserving useful storage behind the adjoining run.

There’s no evidence IKEA deliberately hides this option, but the planning detail is easy to miss. A regular SEKTION base cabinet can become the starting point for a custom corner instead of forcing the entire room around one oversized unit.

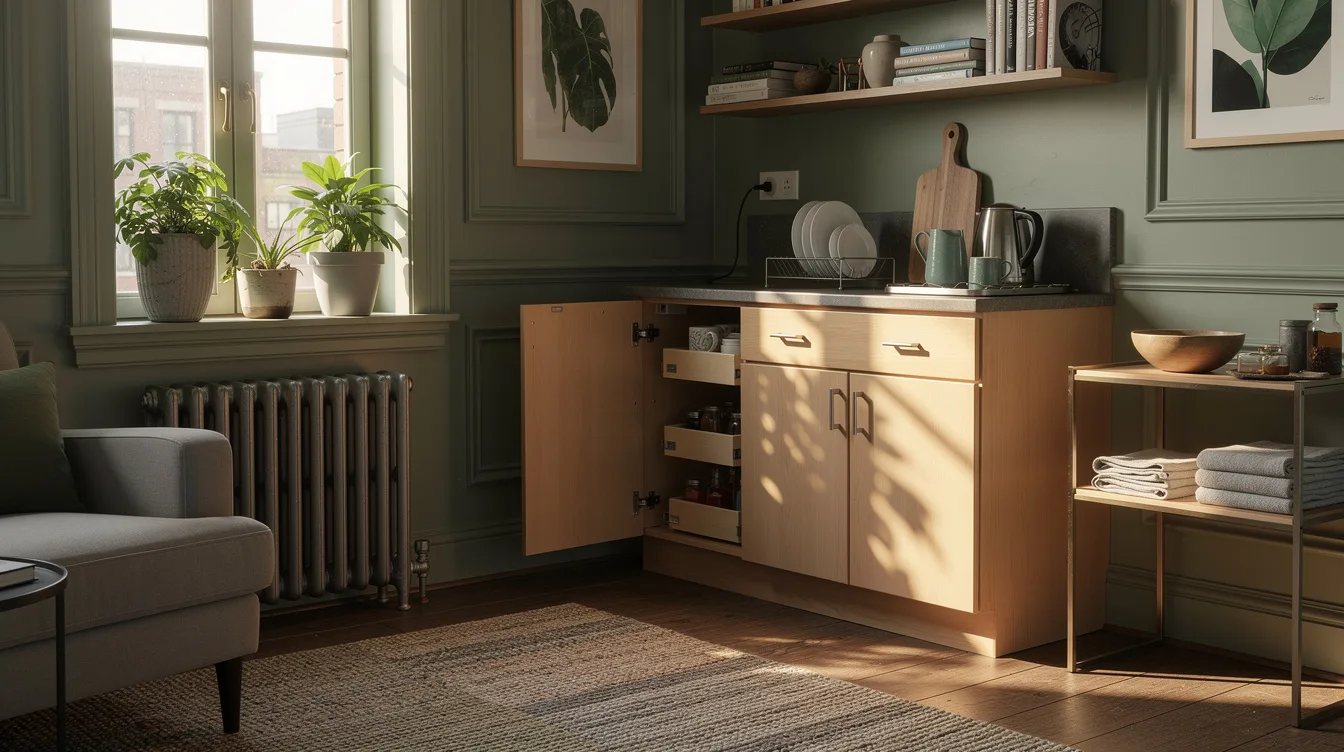

Use the 36-Inch Blind-Corner Layout

Inspired Kitchen Design documents a real installation built around a 36-inch SEKTION base cabinet, an 18-inch accessible door, and an 18-inch concealed panel. That arrangement creates a blind corner with storage behind the visible opening.

The configuration helped the homeowners keep the L-shaped run less bulky and preserve room for an island. It is a custom layout, so treat the measurements as a design reference rather than a ready-to-order IKEA combination.

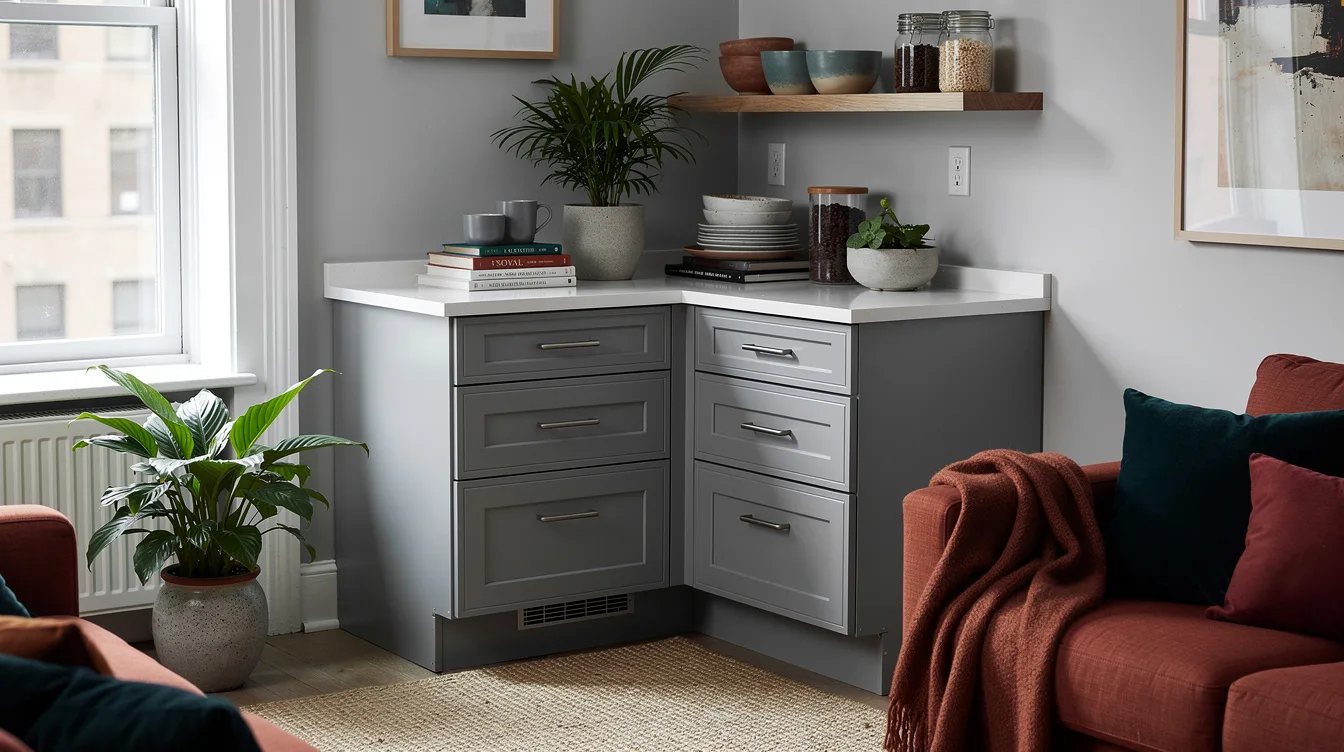

Shrink the Build to 30 Inches

When the larger arrangement still consumes too much room, the smaller alternative uses a 30-inch version with a 15-inch door and a 15-inch concealed panel. This can make the difference in a compact kitchen where every inch affects the walkway.

The smaller opening demands more discipline from the storage plan. Keep bulky cookware out of the hidden section and decide exactly what belongs there before ordering panels or interior hardware.

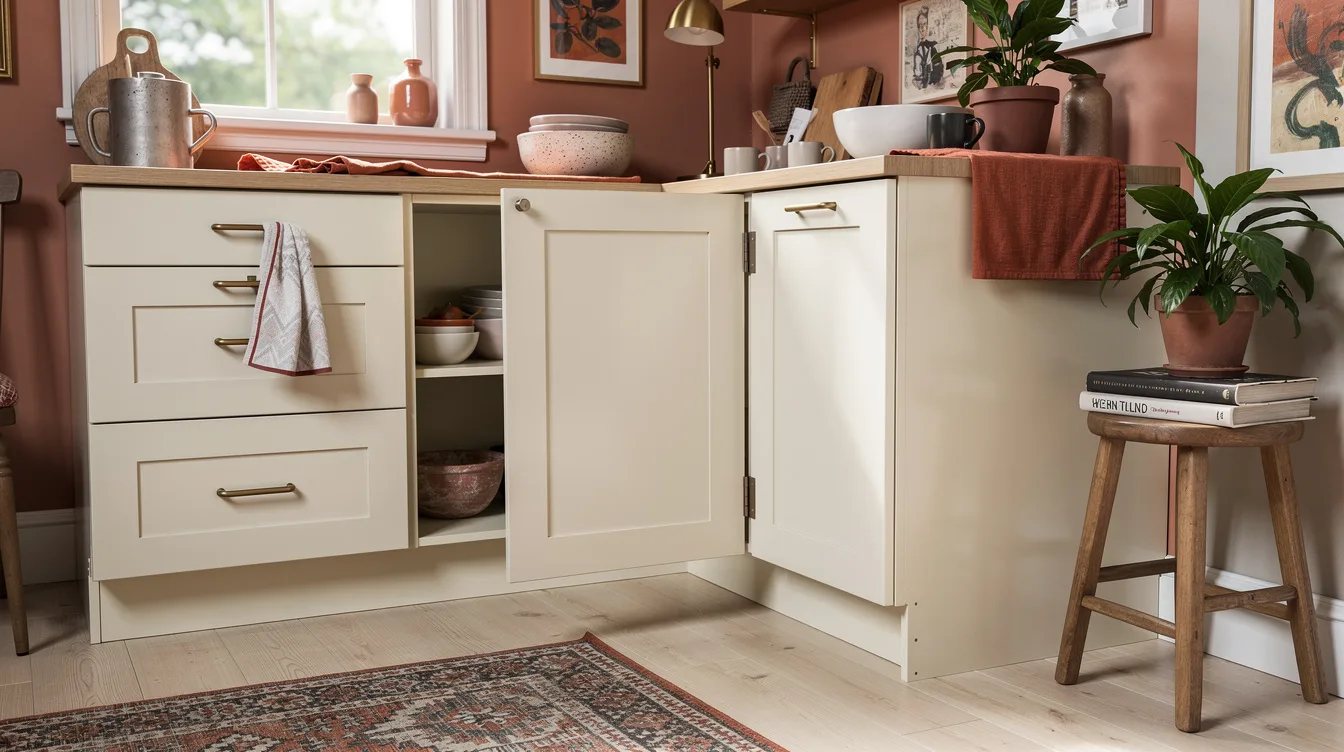

Separate Door Width From Clear Opening

An 18-inch door does not automatically create an 18-inch usable opening for an organizer. A Rev-A-Shelf 5PSP-15-CR, for example, specifies a minimum 15-inch frameless opening along with additional internal depth and height clearance.

Measure the opening after accounting for the cabinet frame, hinges, adjacent doors, and any filler. This is where a promising blind corner can lose its function, especially when a pull-out needs to travel through a narrow front.

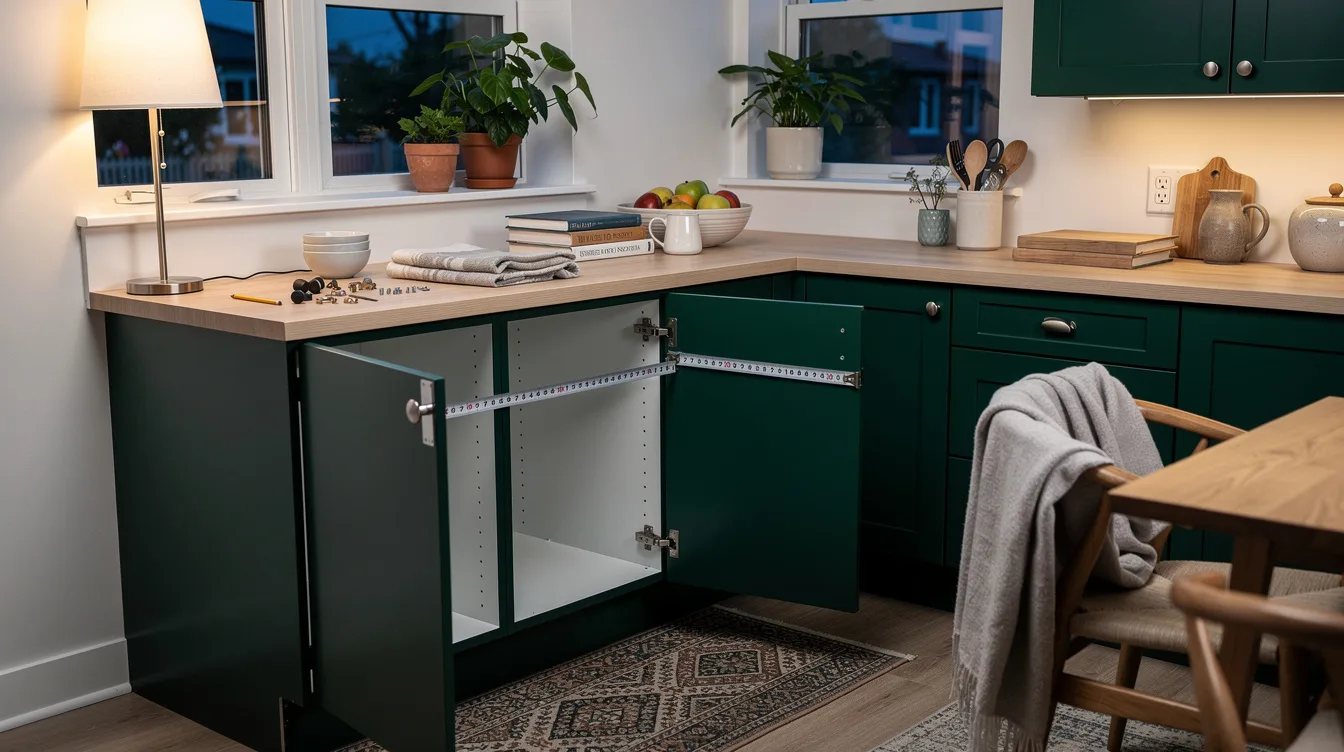

Measure the Cabinet Box Before Choosing Hardware

Start with the actual cabinet box, wall position, door swing, and neighboring run. A cabinet box can look generous on a floor plan while losing usable room to hinges, side panels, plumbing, or a thick countertop overhang.

Make a simple full-size sketch on the floor with painter’s tape, including the accessible front and concealed panel. A typical planning mistake is ordering the organizer first, then discovering that the opening and interior clearances work against each other.

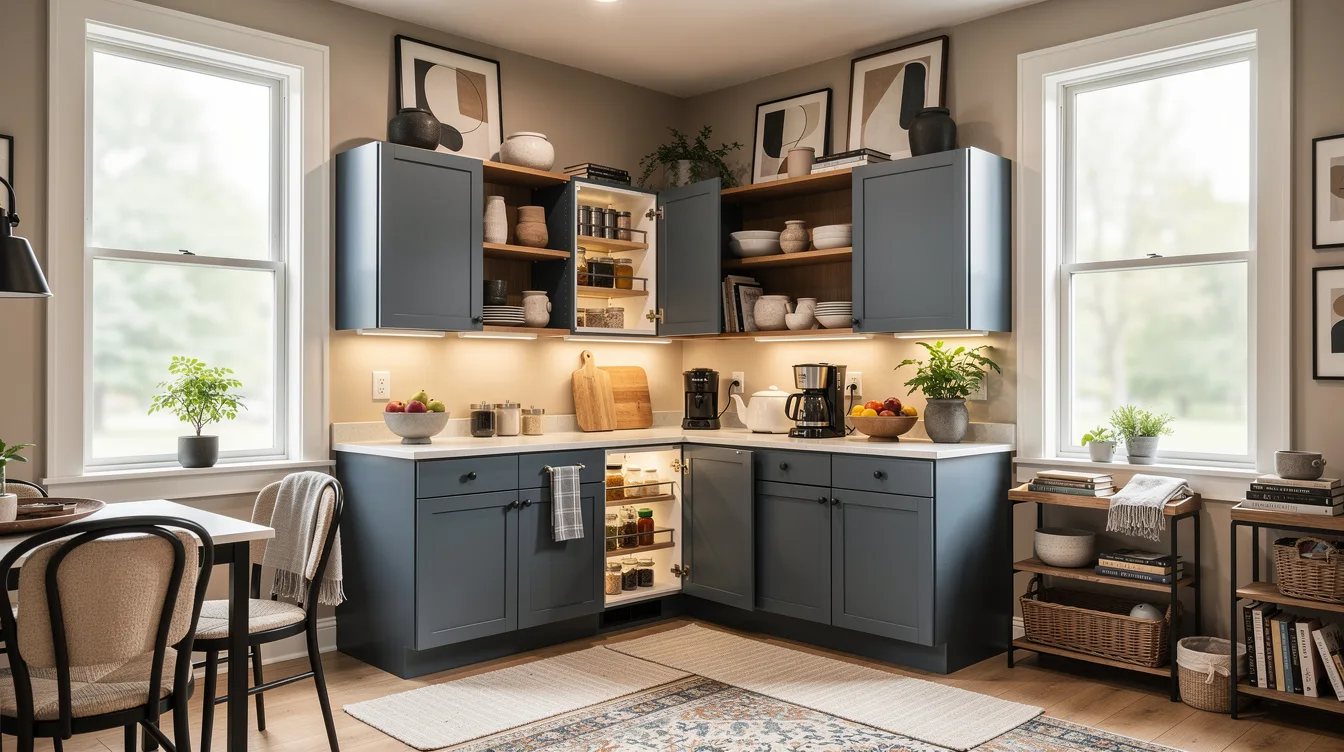

Reserve UTRUSTA for the Right Cabinet

IKEA’s current UTRUSTA carousel is listed for a SEKTION corner base measuring 38 by 24 inches. The fitting has two rotating trays, an adjustable upper tray, and no center post, which leaves the middle more open for larger cookware.

The current listing gives tray diameters of 30¾ inches and a height range of 19⅝ to 29⅞ inches. Those figures matter more than the product name, because the carousel only works when the cabinet dimensions and internal clearances match the listing.

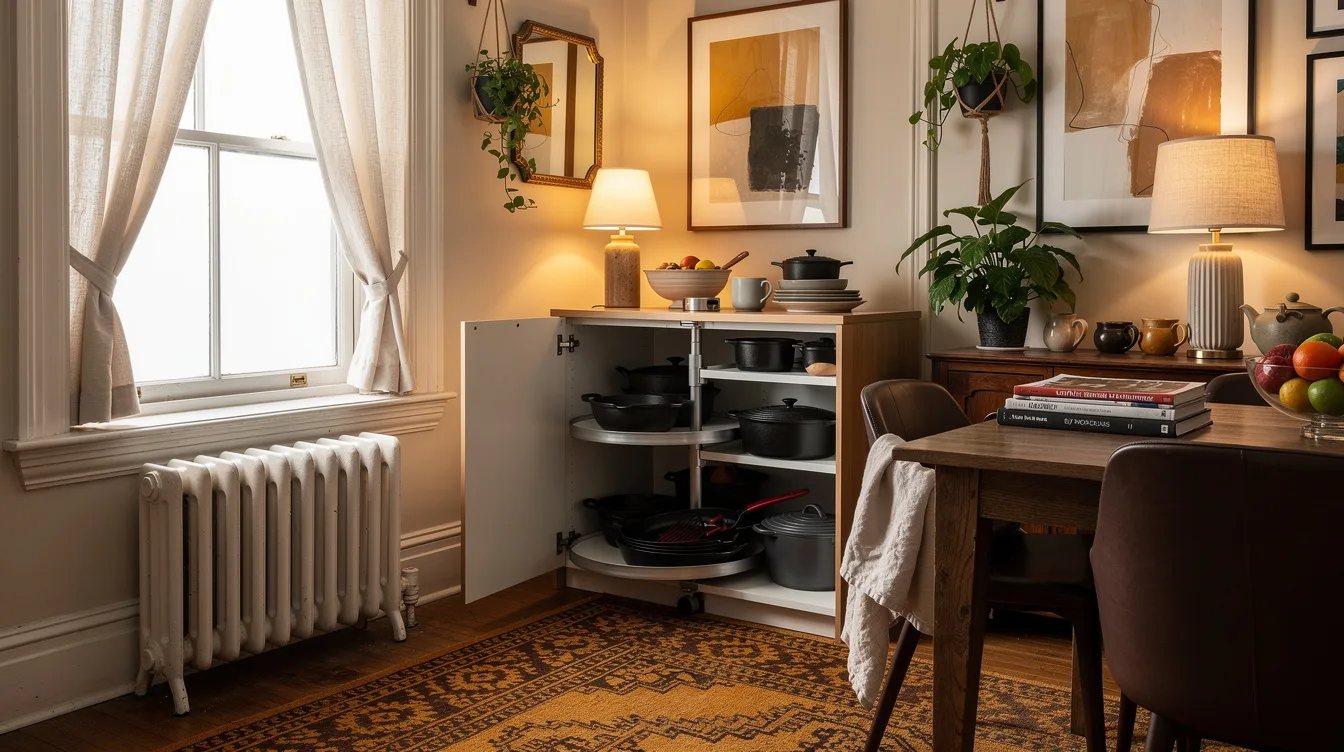

Check the Load Before Storing Cast Iron

The current carousel listing gives a maximum load of 44 pounds per shelf, with trays made from particleboard, melamine foil, and plastic edging. Its main structural support uses powder-coated steel.

That capacity is generous for everyday cookware, but it does not make the corner a dumping ground. Group lighter serving pieces on the upper tray and keep dense cookware low, where it is easier to lift without twisting around the cabinet opening.

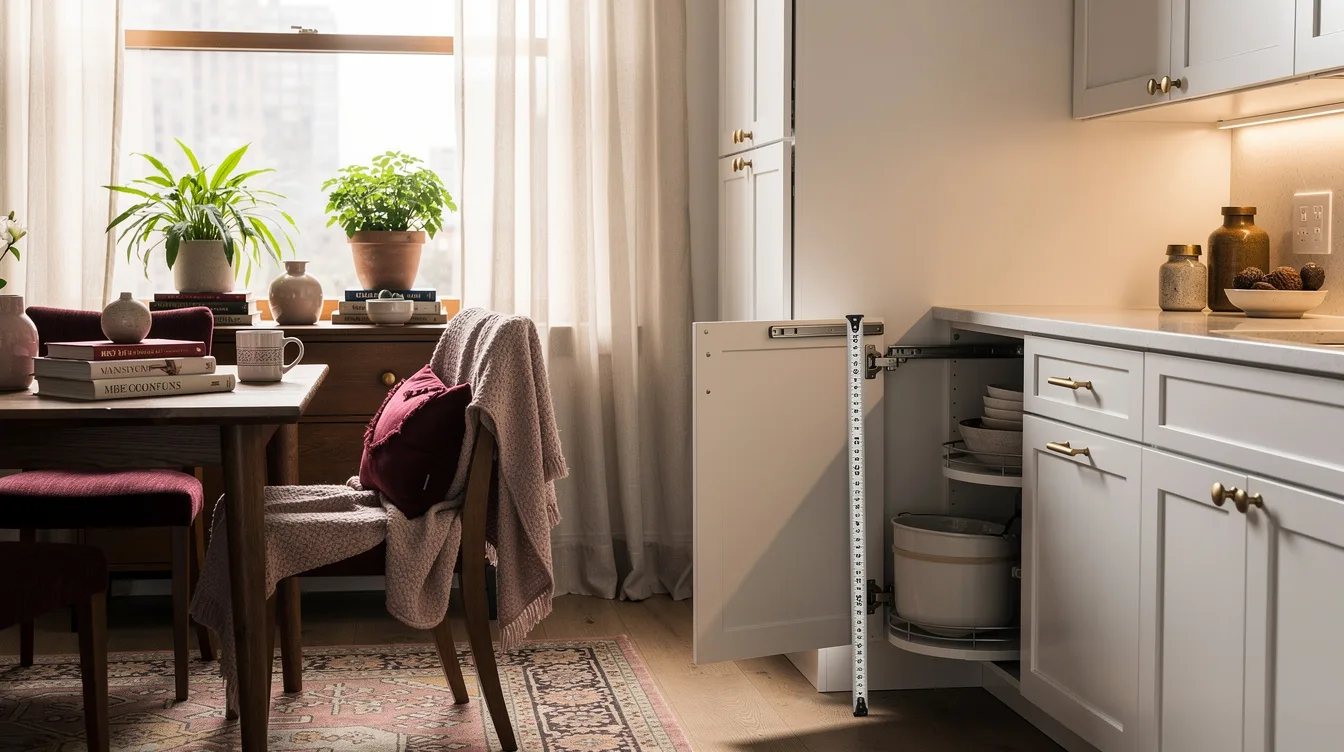

Test the 50-Inch Requirement First

The current UTRUSTA pull-out specifies a 50-inch corner cabinet, so do not assume every SEKTION corner cabinet can accept it. This is the most important 2026 compatibility check for anyone shopping from an older kitchen plan.

Owners of older 47-inch cabinets report compatibility problems with current fittings. Compare the exact cabinet specification, support points, and opening requirements before removing an existing organizer or placing a new order.

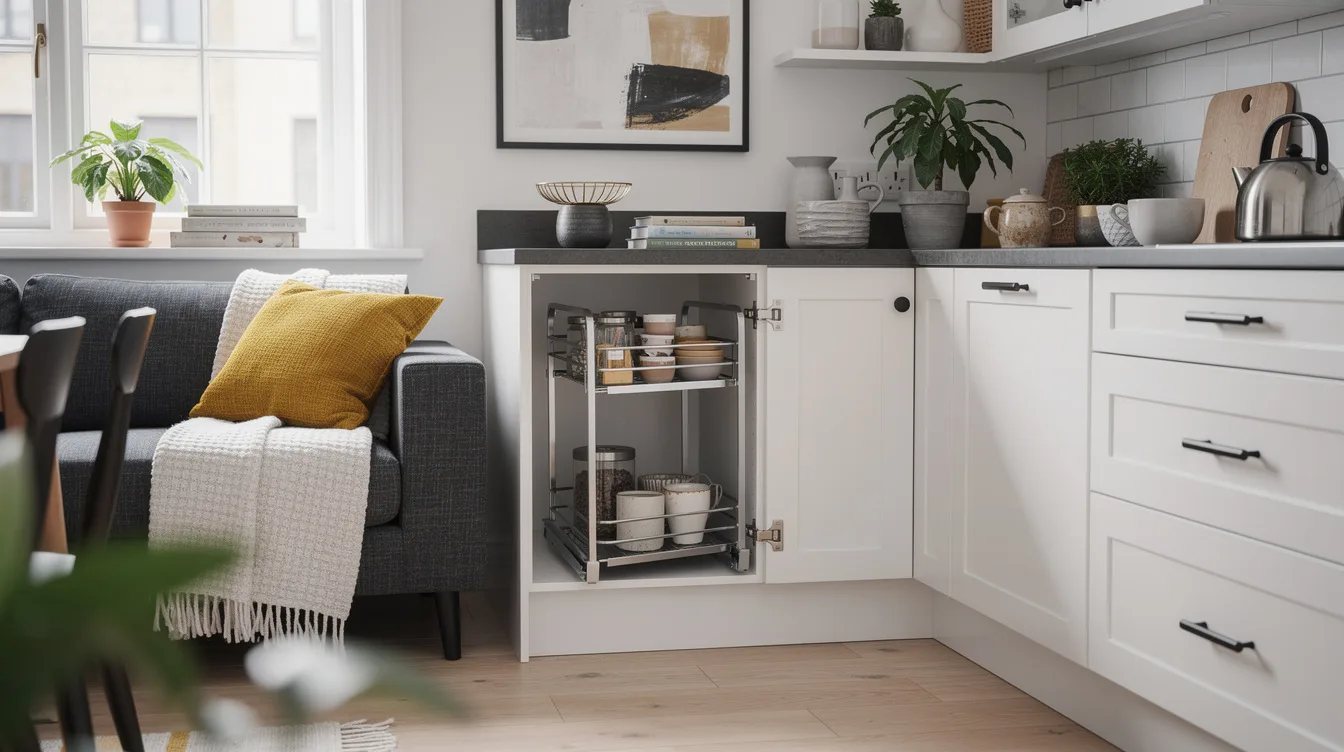

Price the Organizer Separately

For a typical 2026 parts comparison, treat the current UTRUSTA carousel as about $110 for the fitting alone. The advertised price covers the organizer, not the cabinet box, doors, panels, fillers, countertop work, delivery, tax, or installation.

That separation makes the custom blind-corner option easier to judge. A cabinet that looks cheaper at first can require more panels and labor, while a ready combination may cost more upfront but reduce fabrication work.

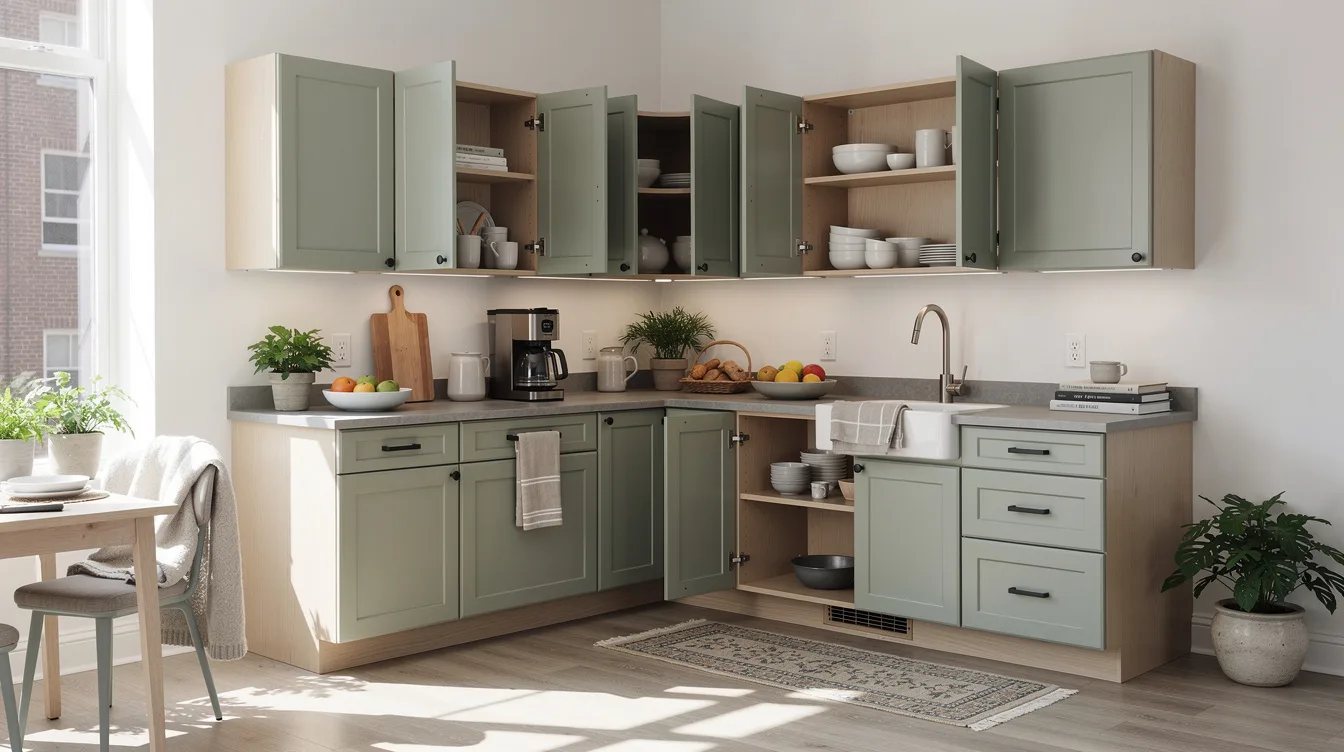

Compare the Two Full Cabinet Combinations

IKEA lists a 38-by-24-by-30-inch SEKTION corner combination with AXSTAD matte-white fronts and a carousel at $425. That is a complete cabinet combination, not the organizer-only price.

The same type of combination with LERHYTTAN blue fronts is listed at $499. The difference reflects the front style and package, so compare the complete contents before treating either number as the cost of a finished corner.

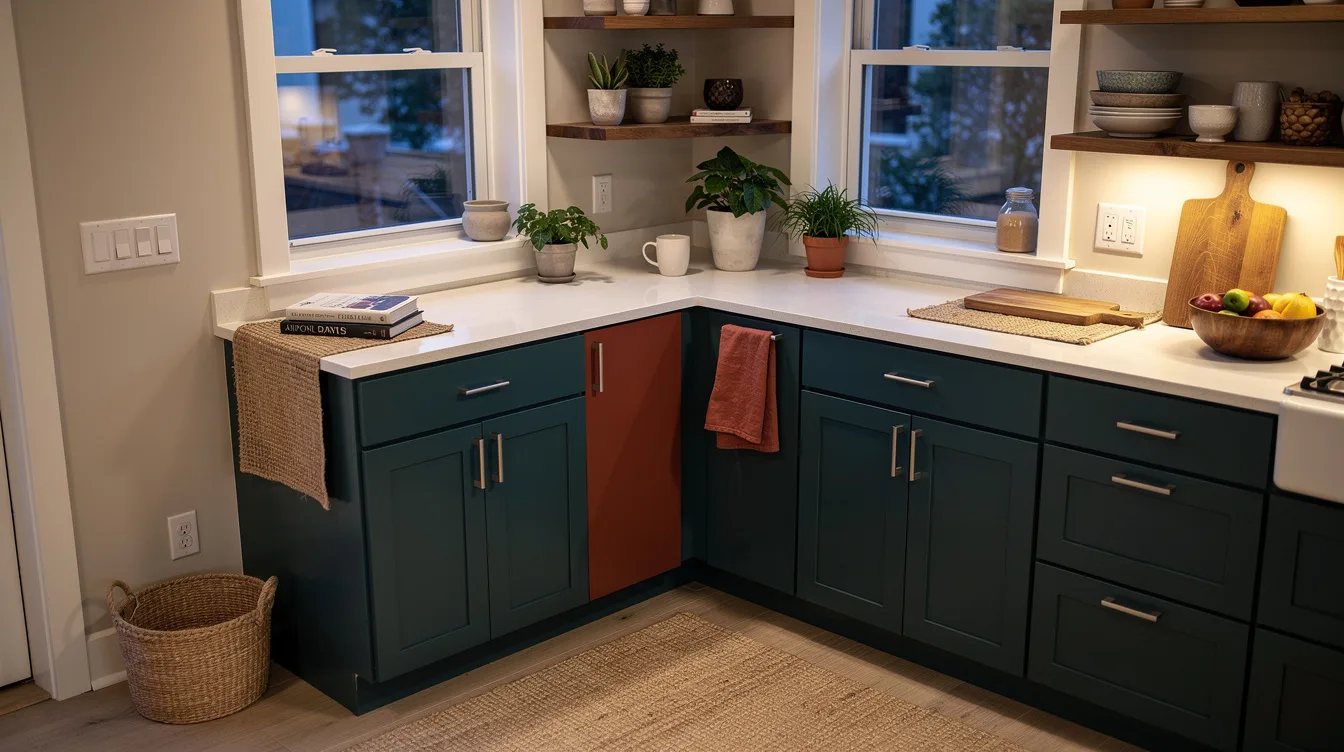

Design the Concealed Panel Like a Real Front

The hidden side still affects how the kitchen reads, so use a finished concealed panel that aligns with the adjacent doors. Match the panel color, edge treatment, and reveal instead of leaving a raw cabinet edge visible beside the walkway.

A clean panel also protects the storage area from becoming a visual dead zone. Use the concealed section for occasional cookware, trays, or backup supplies, then keep daily items near the accessible opening.

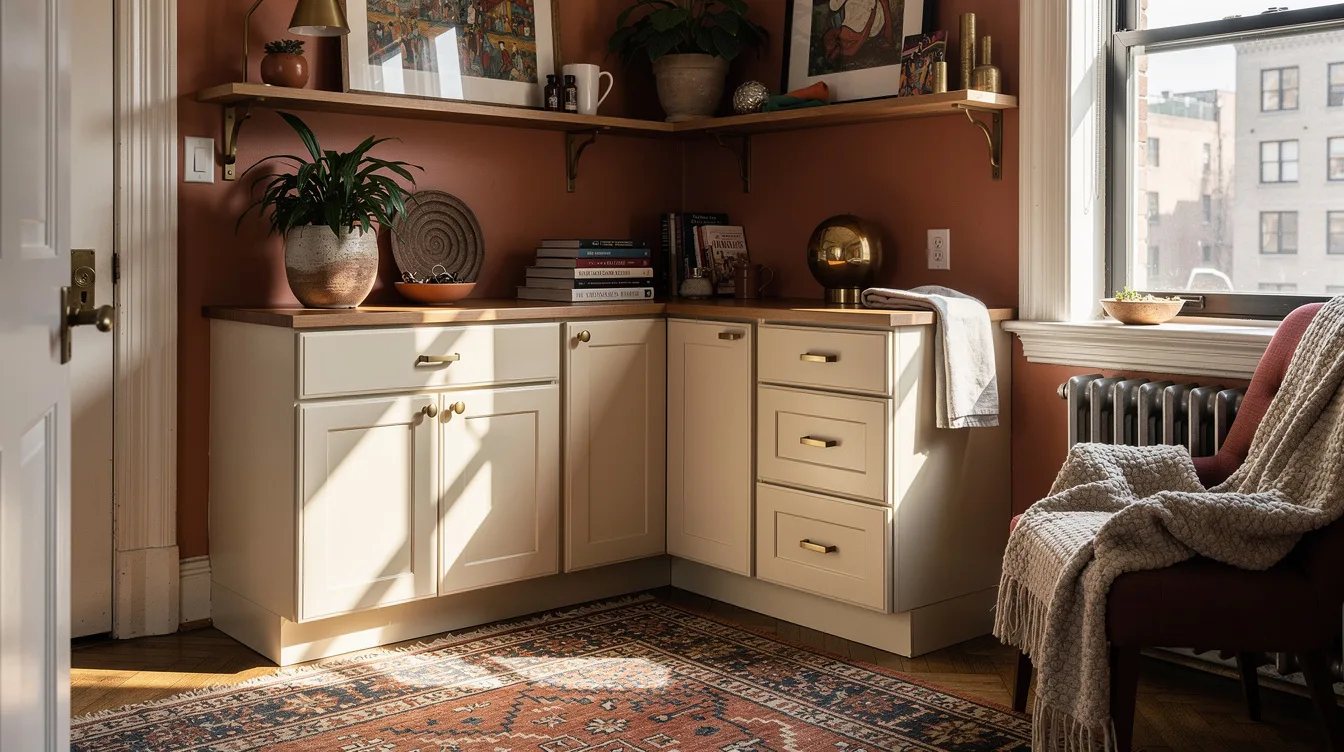

Build the Order Around Installation

Put the cabinet, door, panel, filler, hinges, and organizer on one measured parts list. A melamine panel may look interchangeable with a door in a sketch, but its thickness and mounting method can change the opening available to hardware.

Before the final install, dry-fit the boxes and mark the swing on the floor. Leave the installer a clear sequence for leveling, attaching the panel, setting the door, and testing the organizer while every adjustment remains accessible.

Keep reading

• Blind Corner Cabinet Eating Your Cookware? 12 Home Depot Pull-Outs
• Corner Cabinet Swallowed Your Stockpot? 13 Fixes Under $90
• Corner Cabinet Eating Your Pans? Try This Home Depot Renter Fix

Draw the opening and cabinet run at full size before choosing the organizer, then price the complete parts list. That one check will tell you whether the custom blind corner or the current UTRUSTA combination deserves the space.
